Skymaster® HD ESD 463 Notrax electro static discharge mats Black
Art. no: 463-BL
Please share this article with others
Copy this link. After this you can paste and share it.
Product description

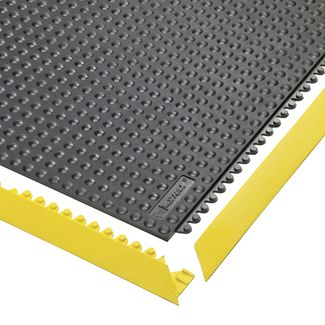

ESD rubber tiles for large areas or individual stations with a bubble pattern for fatigue relief
Color: Black
Quickly go to
Overview
Product Features
- The unique design and craftsmanship make the mat easy to handle and easy to install on site
- A tooled grid of 30 cm x 30 cm sections on the underside of the mat makes further customization quick and easy
- Attachable bevelled edges prevent tripping and allow inside and outside corners
Product description
Skymaster® HD ESD is an Electro Static Discharge (ESD) protective mat that is formulated to drain static electricity from workers to safeguard against static shocks and protect equipment. Skymaster® HD ESD is heavy duty natural rubber compound mat for industrial strength applications. Snap together tiles of 3'x3’ can be easily assembled for coverage of large areas or individual workstations. Ergonomic benefit derived from a 5/8” thick worker platform with a bubble pattern for maximum fatigue relief in dry industrial environments. The unique design and craftsmanship make the mat easy to handle and easy to install on site. A tooled grid of 12"x12" sections on the underside of the mat makes further customization quick and easy. Available beveled edges prevent tripping and allow inside and outside corners. Range of accessories including Skymaster® HD Yellow Safety line™ and Skymaster® HD i-Curve™ and Skymaster® HD o-Curve™ series.
Selling Points
- Dissipative resilient natural rubber compound and unique support design offers exceptional fatigue relief
- Bubble top surface for added comfort that is easy to clean
- Easy to snap together mats on-site for custom work station platforms
- Meets or exceeds requirements of ANSI/ESD S20.20 and per ANSI/ESD STM7.1
- Resistance Point to Ground (Rtg): 1x10⁶ to 1x10⁹ ohms Resistance Point to Point (Rtt): 1x10⁶ to 1x10⁹ ohms
Documentation & video
Accessories
Technical specifications
General specifications
| Color Group | Black |
|---|---|
| Recycled Content | 10.00 |
| Application | Industrial Environments |
| Brand | Notrax |
| Breaking Load | 4.80 Mpa |
| Edges | Attachable beveled edges are available |
| Material | Static dissipative natural rubber |
| Process | Compression Moulding |
| Usage Intensity | Heavy duty |
Instructions
| Cleaning Instructions | 090 |
|---|---|
| Cleaning and Maintenance | 7 |
| Cleaning Remark | ESD mat cleaner is recommended for static safe table and floor mats |
| Recommended use | For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations for use with static sensitive components or workstations. |
| Sales Tip | Heavy duty ESD rubber compound that can be used with all Skymaster® HD series of products. Use Skymaster® HD i-Curve™ and Skymaster® HD o-Curve™ to continue around curved workstations |
