De-Flex® ESD 573 Notrax electro static discharge mats Black
Art. no: 573-BL
Please share this article with others
Copy this link. After this you can paste and share it.
Product description

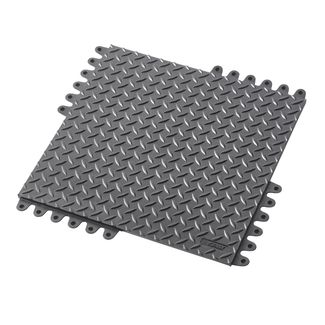

Solid ESD modular rubber mat designed to provide extreme ergonomic support and traction
Color: Black
Quickly go to
Overview
Product Features
- Modular rubber tiles are designed with a universal double-locking system on all sides to ensure an extra strong yet seamless connection for fast installation
- The 19 mm thick platform insulates the worker from the hard ground while the bulleted domes underneath allow the mat to bend and flex with every movement
- Unique extended ramp prevents tripping and allows cart access with smart bevelling solutions for inside and outside corners
Product description
De-Flex® ESD is an Electro Static Discharge (ESD) protective mat that is formulated to drain static electricity from workers to safeguard against static shocks and protect equipment. De-Flex® ESD is extremely comfortable heavy duty anti-fatigue matting system with popular diamond plate traction surface that can be easily assembled for coverage of large areas or individual workstation mats. The modular rubber tiles are designed with a universal double-locking system on all sides to ensure an extra strong yet seamless connection for fast installation. The platform insulates the worker from the hard ground while the bulleted domes underneath allow the mat to bend and flex with every movement. Unique extended ramp prevents tripping and allows cart access with smart beveling solutions for inside and outside corners.
Selling Points
- Dissipative resilient rubber compound with bulleted domes underneath for to bend and flex for fatigue relief
- Solid top diamond plate design provides traction
- Heavy duty industrial floor tiles that are easy to snap together with no male/female ends
- Meets or exceeds requirements of ANSI/ESD S20.20 and per ANSI/ESD STM7.1
- Resistance Point to Ground (Rtg): 1x10⁶ to 1x10⁹ ohms Resistance Point to Point (Rtt): 1x10⁶ to 1x10⁹ ohms
Documentation & video
Technical specifications
General specifications
| Color Group | Black |
|---|---|
| Recycled Content | 10.00 |
| Application | Industrial Environments |
| Brand | Notrax |
| Edges | Attachable beveled edges are available |
| Material | Static dissipative natural rubber |
| Process | Compression Moulding |
| Usage Intensity | Heavy duty |
Instructions
| Cleaning Instructions | 090 |
|---|---|
| Cleaning and Maintenance | 7 |
| Cleaning Remark | ESD mat cleaner is recommended for static safe table and floor mats |
| Recommended use | For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations for use with static sensitive components or workstations. |
| Sales Tip | Easy to make custom configurations on-site by utilizing the #571 De-Flex® Ramps |
